ISO/IEC JTC 1/SC34 N187

ISO/IEC JTC 1/SC34/WG2 N48

ISO/IEC JTC 1/SC34/WG2

Information Technology --
Document Description and Processing Languages
-- Information Presentation

TITLE: Proposed Technical Corrigendum 1 to ISO/IEC 10180:1995
SOURCE: Defect Editor (A. Okubo)
PROJECT: JTC1.34.15.06.02
PROJECT EDITOR:
STATUS: Proposed Technical Corrigendum
ACTION:
DATE: 2000-12-02
DISTRIBUTION: SC34/WG2 and Liaisons
REFER TO: ISO/IEC 10180:1995, SC34/WG2 N41(Defect report on SPDL)
REPLY TO: Dr. James David Mason
(ISO/IEC JTC1/SC34 Chairman)
Y-12 National Security Complex
Information Technology Services
Bldg. 9113 M.S. 8208
Oak Ridge, TN 37831-8208 U.S.A.
Telephone: +1 423 574-6973
Facsimile: +1 423 574-1896
E-mailk: mailto:[email protected]
http://www.y12.doe.gov/sgml/sc34/sc34oldhome.htm

Ms. Sara Hafele, ISO/IEC JTC 1/SC 34 Secretariat
American National Standards Institute
11 West 42nd Street
New York, NY 10036
Tel: +1 212 642 4976
Fax: +1 212 840 2298
E-mail: [email protected]


Proposed Technical Corrigendum 1 to ISO/IEC 10180:1995


Introduction

This technical corrigendum corrects the errors in ISO/IEC 10180:1995.


Corrigenda

Introduction

Change "font object format" in list h) into "Indexed Font Representation Format".

3 Definitions

3.28 Dictionary:

Change "name/value pairs" into "key/value pairs".

3.56 imaging:

Change "clause 17" into "17".

3.57 imaging activity:

Change "clause 17" into "17".

3.99 Printable String type:

Change "ISO 8824" into "ISO/IEC 8824".

3.109 Simple Glyph Name type:

Change "A type whose values are a subset of the values of the Name type" into "The type including subset of value of Name type.The set of values of the Simple Glyph Name type is the set of Names of length less than or equal to 100 characters which begin with a character other than the period (".")."

4 SPDL General Architecture

4.3.5 Document Presentation

Change "See figure 3)" in the 1st para., last line to "See figure 3".

6 Types

6.10 Octet String type

Change "OctetString type" in NOTE 21 into "Octet String type".

7 Document Structure

7.7.7 Color Space Families Used

Change "used or" into "specified in".

7.7.7.2 HINT VALUE

Change "COLOR SPACE FAMILY" into "COLOR SPACE FAMILY IDENTIFIER".

8 External Structure Elements

Change "the within" in the 3rd para., line 3 into "within".

8.1 INCLUDABLE STRUCTURE

Change "FONTTYPE1 SPECIFICATION" into "FONTTYPE1 FONT SPECIFICATION".

9 Resource Definitions

9.1.5 Resource Declaration

Change "RESOURCE DEFINITION" in the last para. line 3 into "RESOURCE DECLARATION".

9.4.2.2 Name Binding

Change "RESOURCE DEFINITION" in line 3 into "RESOURCE DECLARATION".

10 Fonts

10.9.1 REMAP

Change "GLYPH INDEX MAP TRANSLATION TABLE" into "GLYPH INDEX TRANSLATION TABLE".

10.9.3 REMAPPED FONT SPECIFICATION TABLE Processing

Change "GLYPH INDEX MAP TRANSLATION TABLE" in item c into "GLYPH INDEX TRANSLATION TABLE".

10.10.3.2 INDEX VALUE

Change "the MAP SIZE structure element" in line3 into "the preceding FONT INDEX MAP SIZE structure element".

10.12.2 GLYPH IDENTIFIER LIST

Change "the most immediately superior MAP SIZE structure element" in para. 2 into "the preceding GLYPH INDEX MAP SIZE structure element".

11 Document Production Instructions

11.5.1.4 NUMERIC DIMENTION

Change "NUMERIC DIMENSION VALUE" into "NUMERIC DIMENSION".

11.5.3.2 NAMED HEAD LOCATIONS

A wrong glyph is used for the "less than or equal" symbol in mathmatical formulae.

11.5.3.3 NUMERIC HEAD LOCATIONS

A wrong glyph is used for the "less than or equal" symbol in mathmatical formulae.

12 Medium Document Production Instruction

12.5.1 MEDIUM SIZE

Change "medium-size property" into "medium-size medium property".

13 Presentation Document Production Instructions

13.3.2 Supplementary Page Select Document Production Instruction Processing

Change "page-select" in the 2nd para., last line into "supplementary-page-select".

13.7 Y-Image-Shift Document Production Instruction

Change "y-axis" in line 2 into "x-axis".

14 Finishing Document Production Instruction

14.2.7 Head Locations

Change "x-axis" in the 2nd para.,line 3 into "y-axis".

Change "y-axis" in the 2nd para.,line 4 into "x-axis".

14.4 FINISHING PROCESS SPECIFICATION

Change "the specification" in the 2nd para., into "the specification of".

14.7.5 Trimming Finishing Process

Change "the Reference Edge" in the 2nd para., line 3 into "the Jog Edge".

Add "JOG EDGE" with arrow which shows the location of the JOG EDGE onto the underside of the rectangle in the Figure 7 - Trimming Finishing Process.

14.8.5 Die Cut Finishing Process

Change "the die cut itself" in line 4 into "the die itself".

14.12.11 Inserting Finishing Process

Change "the Medium Document Production" in the 2nd para., line 1 into "the Medium Document Production Instruction".

15 Management Document Production Instruction

15.8.7 Output Specification Document Production Instruction Reconciliation

Change "in Supplementary DPI" in the 2nd para., line 1 into "occurs in Supplementary DPI".

16 Document Structure and Content Processing

16.1 BLOCK

Change "a PAGES structure element" into "a PAGE SET structure element".

16.2.2.4 Initial CurrentTransformation

Change the reference "19.16" into "19.17".

17 Document Content Processing Model

Change "the content notation specifier in the Content value" in the 2nd para., line 4 into "the content notation identifier in the Current Context of Interpretation".

17.1.2 Parser

Change "the content notation specifier in the Content value" in line 5 into "the content notation identifier in the Current Context of Interpretation".

17.1.3 Sequence of tokens

Change "Vector object" in the 3rd para., line 2,3 into "Vector".

Change "Procedure object" into "Procedure".

17.2.3 Clipping Region

Change "assured reproduction area" in NOTE 81, line 1,4 into "imageable region" (see 3.54).

17.3.1 Reference Coordinate System

Change "16.8" in the last line into "19.19".

17.4.2 Objects last line

Delete "When the type of a object is implied by the content and there are a number of such objects in close proximity, the content literal may stand alone, without its associated type, as in the last example above."in the last sentence.

17.4.8 Operand Stack

Change "the stack" in example, line 1 into "the operand stack".

18 Content Data Types

18.1.1 Any

Change "super type" into "super-type".

18.1.4 Dictionary Key

Change "18.2.4" in NOTE 84, line 1 into "18.2.1".

21 Stack and Composite Object Operation

21.1.13 Index

The number of results "n+1" is not correct. It should be changed to "n+2".

21.3.2 CheckIfReadable

Change "ReadOnly.," in the last para., line 1 into "ReadOnly,".

22 Flow of Control, Procedure, and State Operators

22.11 RestoreGraphicState

Change "(see clause 12)" in the 2nd line into "(see 19)".

25 Base Indexed Font Specification Dictionaries

Change subclause titles in clause 25 as follows:

  • Change "25.1 FontType 3 Indexed Font Specification Dictionaries" into "25.1 Required key/value pairs for FontType 3 Indexed Font Specification Dictionaries".
  • Change "25.2 FontType 3" into "25.2 Optional key/value pairs for FontType 3 Indexed Font Specification Dictionaries".
  • Change "25.3 FontType 1 Indexed Font Specification Dictionaries" into "25.3 Required key/value pairs for FontType 1 Indexed Font Specification Dictionaries".
  • Change "25.4 FontType 1 Indexed Font Specification Dictionary" into "25.4 Optional key/value pairs for FontType 1 Indexed Font Specification Dictionaries".
  • Change "25.5 FontType 1 Indexed Font Specification Dictionaries" into "25.4.6 Other entries in FontType 1 Indexed Font Specification Dictionaries".

27 Font and Character Text Operation

27.1.2 GetSelectedFont

Change "SATISFACTION REQUIREMENT" into "SATISFACTION CRITERION".

29 Geometric Graphics Operators

29.4.1 RectangleFill

Change the term "CTM" into "CurrentTransformation Graphics State Variable".

29.5.10 SetStrokeEnd

Change the column name "stroke ends" in Table 34 into "Stroke End Features".

29.5.11 SetStrokeJoin

Change the column name "mitre join" in Table 35 into "Stroke Join Features".

35.3.1.4 TransformPQR

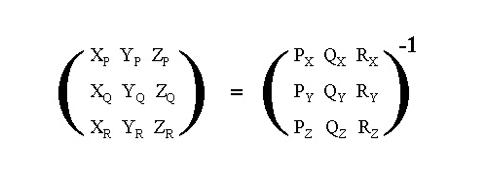

Change the last equation as follows.

36.6 Interpreter Errors

Change "Most" in the 1st para., line 1 into "most".

36.6 Interpreter Errors

Change "occurl" in the 1st para., line 3 into "occur".

37 Clear Text Representaion and Interchange Format

37.1 Clear Text Structure Representaion and Interchange Format

Change "are not allowed in content are not allowed" in the 2nd para., line 4 into "are not allowed".

37.1.2 SPDL Document Type Definition

Change "be defining" in NOTE 231, line 1 into "by defining".

38 Binary Representation and Interchange Format

38.2 -- 38.8

All these sub-clauses should be sub-sub-clauses contained in 38.1.

38.9.3.4 Fixed Point Real Number value field

Change "value of of" in line 2 into "value of".

38.9.3.7 Procedure value field

Change "the the value" in the line 2 into "the value".

39 Conformance

39.5.2 Resource Definitions which are Subordinate to a DOCUMENT

Change "no more than than" in list item 1, line 2-3 into "no more than".

39.5.4 Color Space Families

Change "which which" in para. after Table 48, line 1 into "which".

39.8.1 Ability to construct and save objects

Change "name/value pairs" in item 4 into "key/value pairs".

39.10 Imaging

Change "in terms or" in line 1 into "in terms of".

Annex B

Change "B.1" into "B".

This annex contains only one sub-clause (B.1), and the title of this sub-clause is almost same with the title of the annex itself. Sub-clause B.1 should be deleted, and its contents should become immediate subordinates of Annex B.

Annex E

Table E.1

Change the glyph ID "afii:64" in (index 64) into "afii64".

Annex F

Change "F.1" into "F".

This annex contains only one sub-clause (F.1), and the title of this sub-clause is almost same with the title of the annex itself. Sub-clause F.1 should be deleted, and its contents should become immediate subordinates of Annex F.

Annex F

Table F.13

Change the object name "dpi::bindingtype::perfect" into "dpi::binding::type::perfect"

F.1.2

Change the "ISO 9070" and "ISO/IEC 8879" into "ISO/IEC 9070" and "ISO 8879" respectively.
